What is the Vibroblock concept in the SH 1203?

The Vibroblock concept isolates vibrations within the screen frame, protecting the chassis and ensuring efficient operation.

What type of screen does the SH 1203 feature?

The SH 1203 is equipped with the STE 2-67 screen, featuring two decks with a 1.4 x 4.8 m surface, a 12 mm stroke, and an 11° inclination.

The SH 1203 is ready for operation in just 10 minutes, thanks to its hydraulic setup system.

The machine includes hydraulic folding stairs, self-closing gates, and emergency stops on key components to maximize operator safety.

The SH 1203 is built on a hook-lift chassis, making it easy to load onto trailers or tow within a site using its rubber wheels.

The SH 1203 operates with electric power, consuming only 20 kWh for efficient and environmentally friendly operation.

The SH 1203 features hydraulically operated conveyors, including a fines conveyor with a width of 1200 mm and a height of 3.8 m in elevated mode.

The feeding conveyor is 800 mm wide and 7.0 m long, ensuring optimal material distribution across the screen.

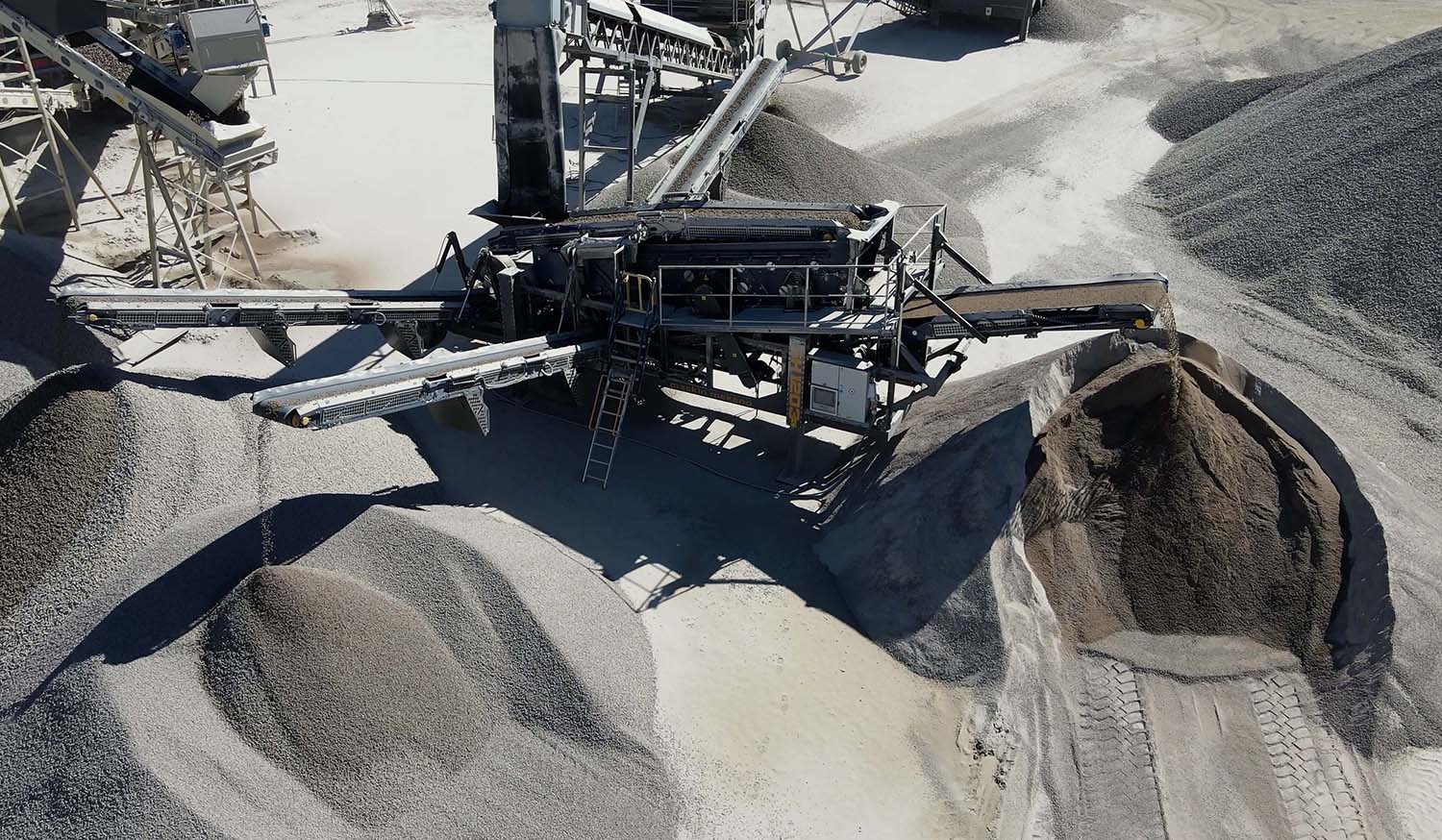

SH 1203 is a new final screen producing 4 fractions in a very compact format. More information coming soon!
